PRODUCTS

Media Player

PRODUCT ITEMS

Multimedia Advertisement, GPS based Station Announcement and Breaking News, VOD Multimedia.

(Model #: DH-BUS-AD-01)
Main Feature

Part 1. Product Feature/ Functions:
Multimedia advertisement
GPS Based Auto Trigger Announcement and Station Reporting
Browse way of VOD-WIFI to realize audio & video on demand.
Insert VOD video server, the max number that can connect end-users are 35+
Multi-segment subtitles for scroll and each segment with one icon.
Multi-user logo to embed in video windows
Multimedia UI can be changed background and ICON freely
BMP LOGO static state when devices power on, and broadcast dynamic MP4 video, both can be freely replaced
Mix to play advertisement and pictures
Playback File List Base
Memory the current video when you power-off and resume the video content while power back.
UDP internet control local machine operation
Part 2 .Hardware/ Software Introduction:
Android 4.4.2 system
QUAD core CPU 1.8G main channel
1G DDR
TF card, the max-capacity can be reached 64G
2 pcs USB ports
WLAN Ethernet
External WIFI DONGLE(Optional)
External 3G DONGLE(Optional)
Built-in GPS modules (Optional)
HDMI and AV video Output
9-36 volt wide voltage input
Product Outlook

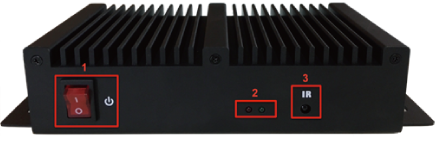

Front part

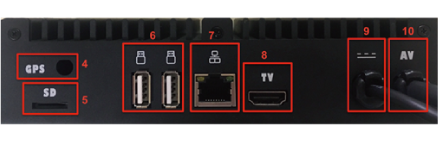

Rear part

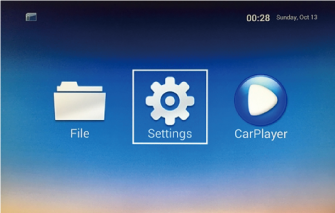

System Main Menu Interface

File: Use for file operation, such as copy files, delete files, paste files and APK update.

Settings: System settings.

Carplayer: Use for realize GPS auto-voice text report station for vehicle-mounted.


Show All Station Announement Media Player

Station Announement

Media Player

Media Player

Media Player
